Design Systems Built for AI Collaboration (Part 2):A Design-and-Deployment Experiment from Figma Make to Vercel

Nov 20, 2025 · 3 min read

Part two tests one thing: whether Figma Make can hand off cleanly to GitHub and run all the way to deployment, while keeping a single source of truth and reusable components.

A hand holding a phone running the FX & Crypto Tracker, showing a dark dashboard of rates, a performance chart, and signal gauges. — The flow runs from Figma Make exporting the front end to GitHub, to Cursor filling in the backend logic, to a final deploy on Vercel. I used an FX and crypto rate-tracking dashboard to put the whole flow through its paces.

TL;DR

Goal: Find out whether design to deployment actually works: Figma Make → GitHub → Cursor → Vercel
Strategy: Figma Make handles the front-end screens, Cursor handles the backend on a separate branch.
Result: The flow runs end to end, but design updates were less smooth than expected. A lot of the time, editing the UI directly in Cursor was faster and used fewer tokens.

Try the live app on Vercel →

1. How Figma Make and GitHub work together

The main thing I wanted to find out here was whether the code Figma Make generates can really land in GitHub and then plug into a Cursor development flow.

My approach was to let Figma Make output the front-end code straight to the GitHub main branch, handle the backend with Cursor on a separate branch, and merge them with a PR at the end.

The rough split was:

Figma Make handles the screens and layout
Cursor handles the API and data logic
GitHub handles version control

I started a new repository and synced the Figma Make project into it.

The main things I was watching for:

Whether the components Figma Make generates can land in GitHub and stay an SSOT
Whether variables and design tokens stay consistent
Whether components are reusable
Whether design changes flow cleanly into development

Structurally, Figma Make stays on the main branch handling the screens, the backend sits on a separate branch, and both eventually merge into a deployable version.

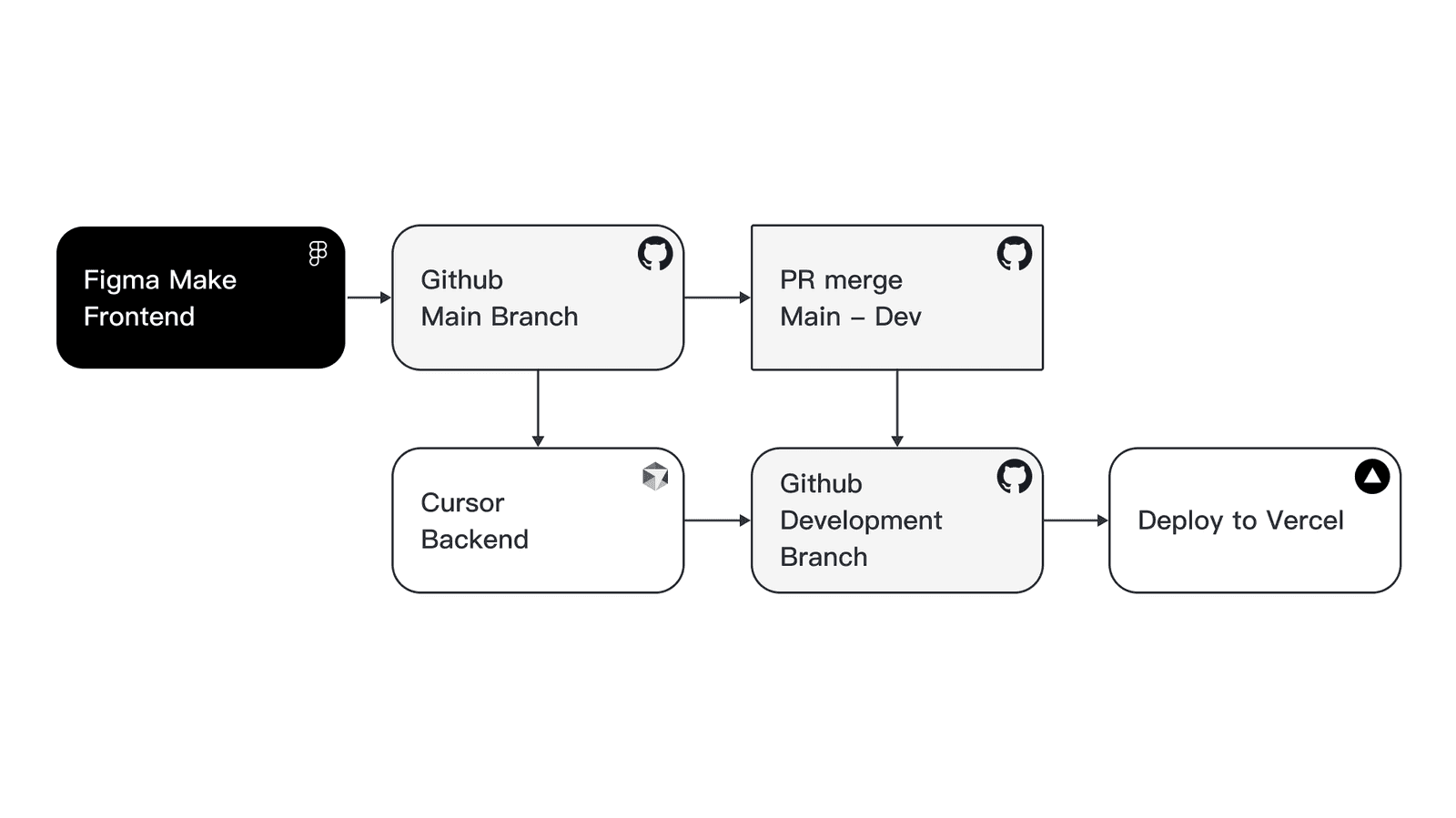

A flow diagram: Figma Make outputs the front end on the main branch, the backend is developed on a separate branch, and both merge via PR and sync to GitHub. — Figma Make stays on the main branch handling the screens, the backend sits on a separate branch, and both merge into a deployable version via PR.

2. A minimal backend with Cursor

Since this was just a flow check, the backend stayed very simple.

Cursor mainly did a few things: fetch exchange rates, fetch crypto prices, basic rate limiting, and return cleaned-up JSON.

It can read the front-end structure synced down from Figma Make and add the APIs on top of it.

This time I deliberately kept it at MVP level: a few endpoints plus a stable data format.

Then I worked backward from the UI to the data it needed, such as:

Rate cards
15-day price chart
Buy/sell signal gauges
Volatility range
Asset allocation

Then I mapped those to external data sources, such as CoinGecko and the ExchangeRate API.

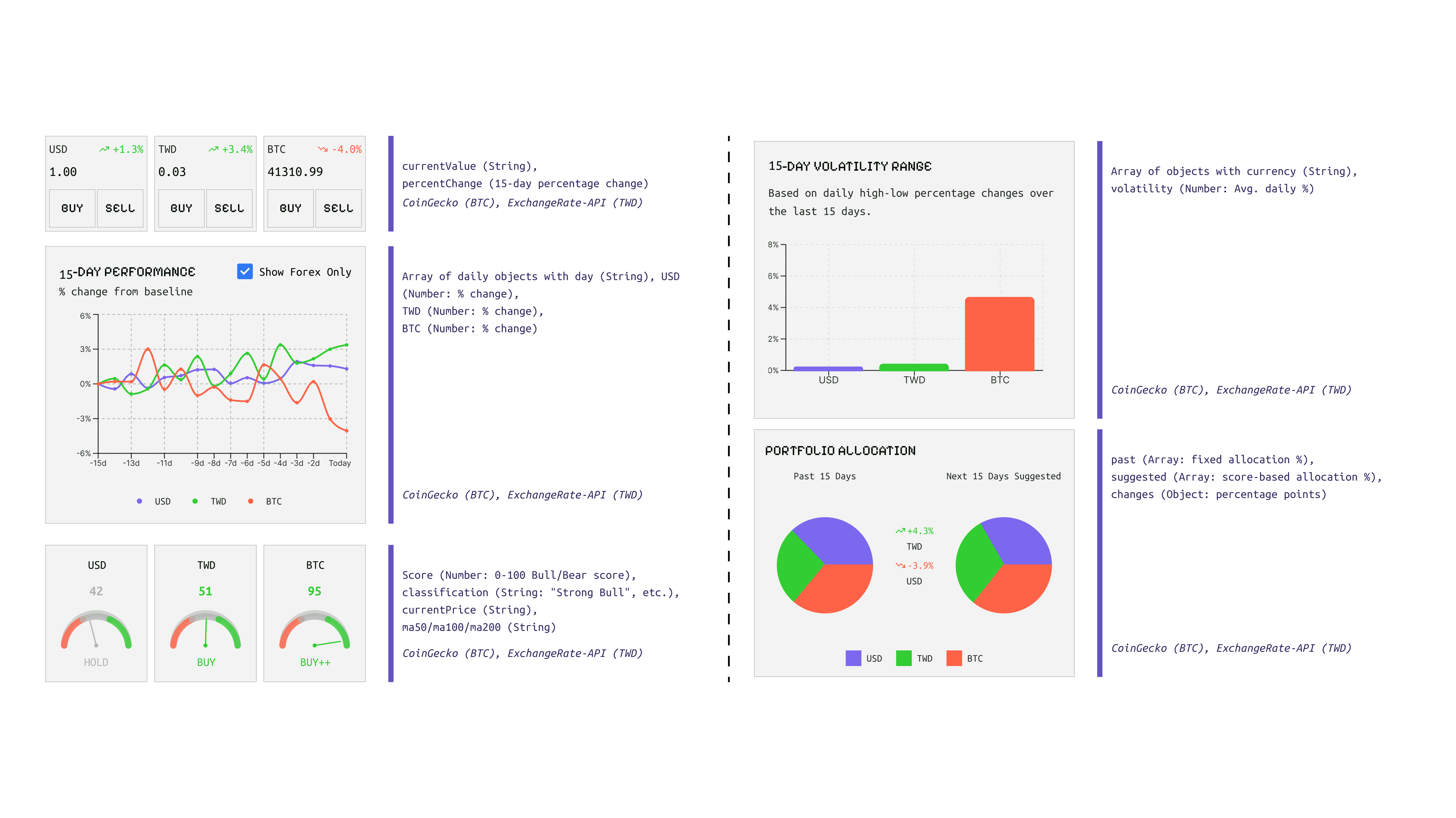

UI components mapped to their data shapes: rate cards, a price chart, signal gauges, a volatility range, and asset allocation, each tied to CoinGecko and the ExchangeRate API. — Working backward from the UI to the data: building the mapping between UI and data so each component knows exactly what it pulls.

The key part of this step was building the mapping between UI and data, so each component knows exactly what it pulls.

3. Deploying to Vercel

With both front end and backend on GitHub, and since there was no login and no database, I deployed straight to Vercel.

This step was less about testing performance and more about confirming the whole flow could actually run end to end: Figma Make → GitHub → Cursor → Vercel.

It went better than expected. After the first successful deploy, later changes redeployed quickly too.

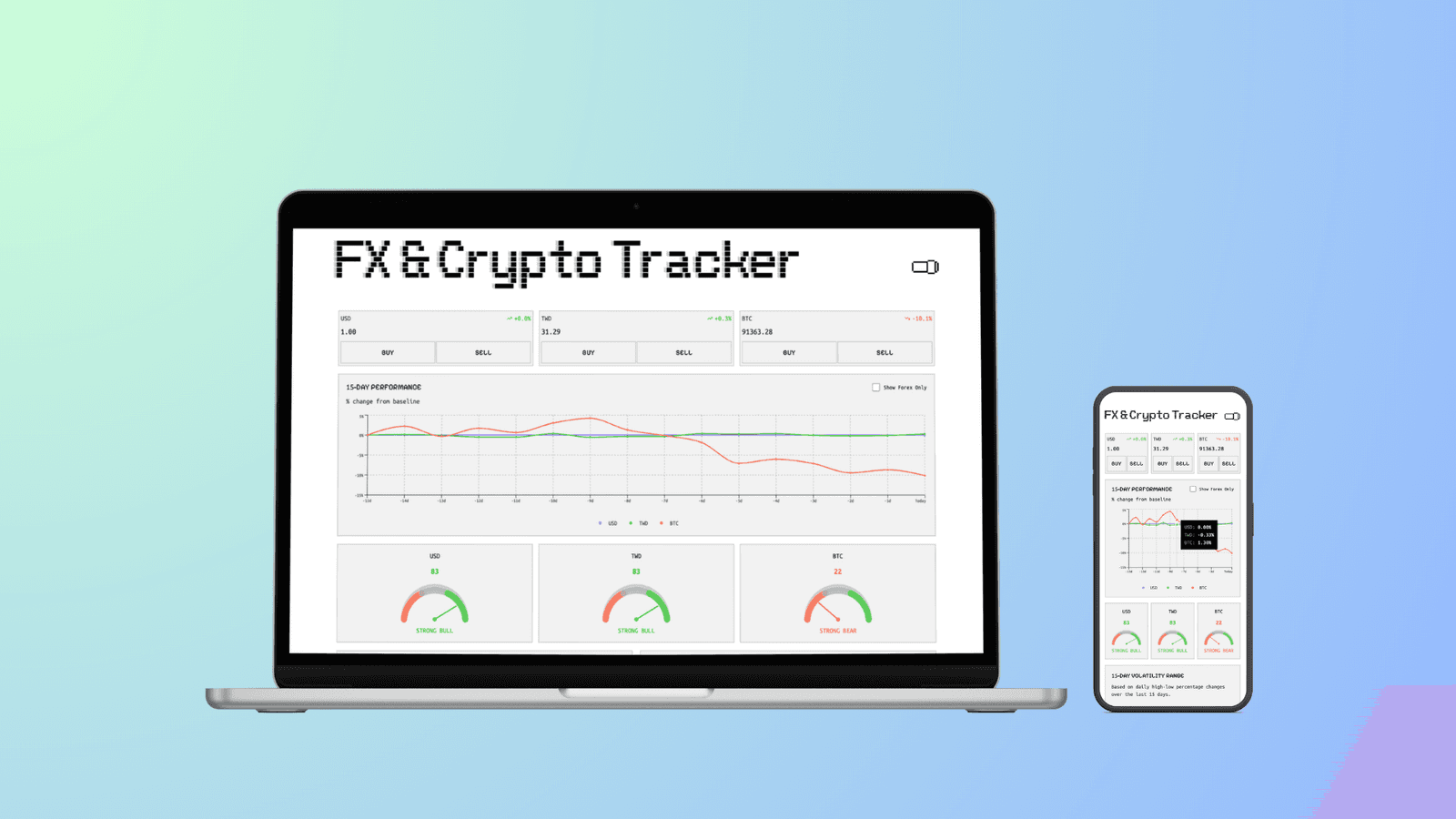

The FX & Crypto Tracker on desktop and mobile, with the dashboard adapting cleanly to both. — After the first successful deploy it was live on Vercel, running on both desktop and mobile, with later changes redeploying quickly.

Try the live app on Vercel →

4. Testing the design-update flow

Once it was deployed, I started testing whether design changes would affect the flow.

I made a few small tweaks in Figma Make:

Switched the font from Pixel Sans to Ubuntu Mono to make numbers easier to read
Adjusted the modal layout so the mobile keyboard would not cover the content
Fixed corner radii and contrast

After confirming, I synced back to GitHub, opened a PR, and merged into the branch that triggers Vercel.

The flow works, but making the tweaks inside Figma Make was less worth it than I expected.

One clear problem is that the design files Figma Make generates carry small detail errors, and right now it is almost entirely a one-way export. When I fed the original design back in, it often missed the details, and sometimes a plain screenshot was actually more accurate.

Through this experiment, I started to feel that editing the UI code directly in Cursor is faster.

Cursor's advantages are clear:

Fast prompt iteration
Results visible right away on localhost
Low cost to make changes
Lower token usage

This time, about 70 prompts used up Figma Make's 3,000 tokens.

5. Takeaways

The flow runs end to end: Figma Make → GitHub → Cursor → Vercel.

The problem is not the architecture, it is the gap that still sits between Figma Make and the design tool.

Once AI-generated UI code leaves Figma Make, it is hard to bring it back to the design layer for fine-tuning, and design and code end up going their separate ways.

Right now, Figma Make looks more like another generation tool, while Cursor is closer to the real center of development.

If Figma can genuinely connect Make and the design tool in the future, designers might be able to design, adjust, and even deploy all in one environment.

For now though, Figma Design and Figma Make are two different product lines. As tools like Cursor keep maturing, Figma Design's role may gradually narrow into a visual and collaboration tool rather than part of the actual development flow.
